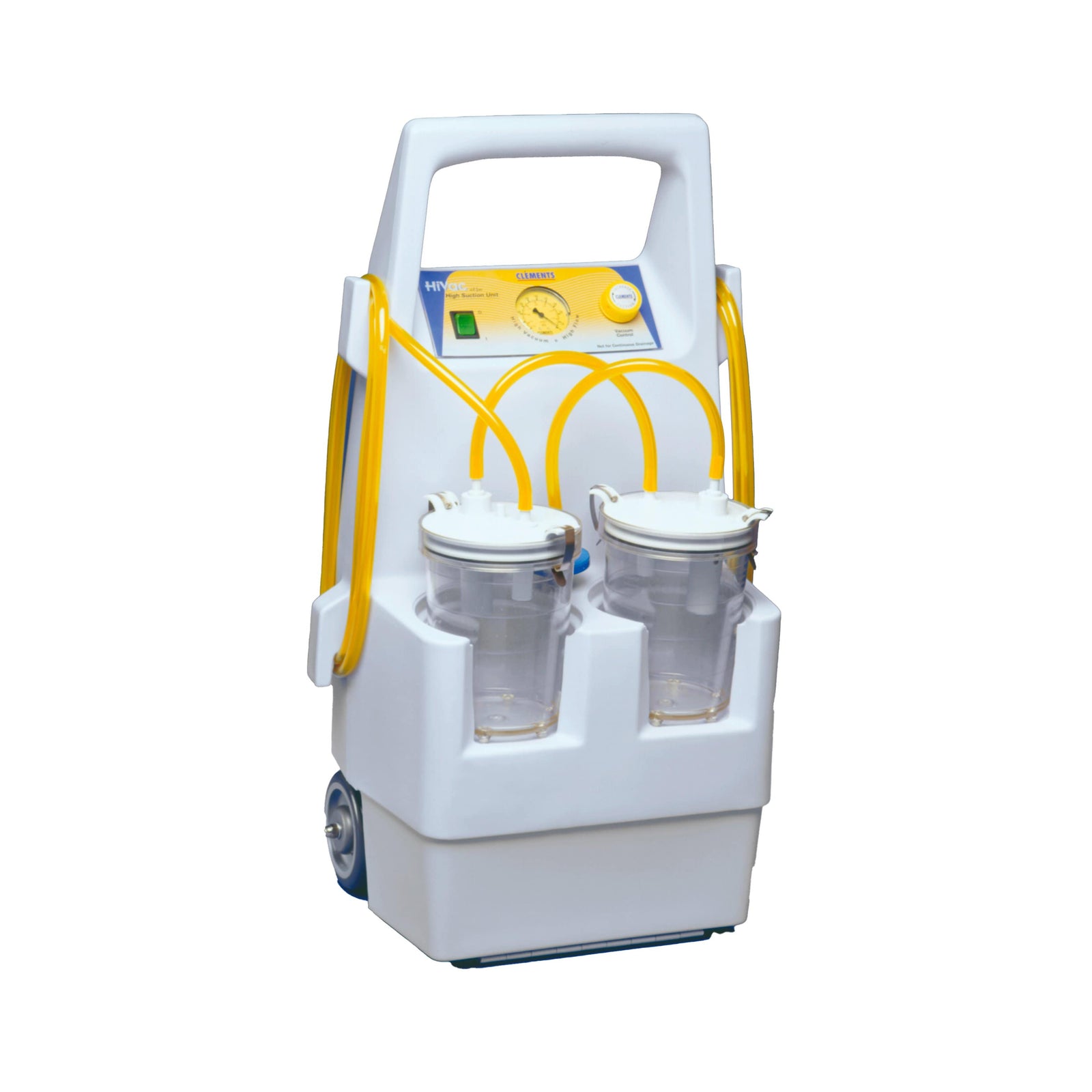

Clements Mobile AC Suction Pump
Clements HiVac and HiFlo suction pumps feature advanced oil-less twin piston pump technology and have been designed for all high suction, high flow applications.
Virtually maintenance free, these units represent the ultimate in affordable and reliable mobile suction.
Hivac / High Vacuum High Flow
- Vacuum up to -98 kPa [-735 mmHg]
- Flow rate up to 55 litre/minute
- 3 stage overflow protection
- Dual scale vacuum indication kPa and mmHg
- Robust single piece, rotor moulded body
- Minimal maintenance and easy to clean.
12 Month Warranty
Part No: SUC84109.
- Power Rating: 240 V (220 V) / 50/60 Hz
- Vacuum: 0 to -98 kPa [0 to -735 mmHg]
- Flow Rate (tested at jar): 32 litre/minute
- Gauge: Bourdon tube type, dual scale, graduated in kPa and mmHg
- Gauge Range: 0 to -100 kPa graduated at 5 kPa, 0 to -760 mmHg graduated at 20 mmHg
- Vacuum Regulator: Neddle valve type
- Pump type: Twin Piston, oil free
- Motor: Permanent split capacitor
- Filter: Disposable bacterial, 0.3 microns
- Collection Canister: 2 x 2 Litre autoclavable, shatterproof polycarbonate jar with self sealing polypropylene bung
- Overflow Protection for Collection Canister: Float valve mechanism
- Dimensions: Unit: 820 mm H 460 mm W 300 mm D Packed: 850 mm H 500 mm W 350 mm D
- Weight: 20 kg
- Housing: Moulded Polyethylene Plastic
- Operation Mode: Continuous operation
HiFlo High Vacuum High Flow
- Vacuum up to -98 kPa [-735 mmHg]
- Flow rate up to 55 litre/minute
- 3 stage overflow protection
- Dual scale vacuum indication kPa and mmHg
- Robust single piece, rotor moulded body
- Minimal maintenance and easy to clean.
12 Month Warranty
Part No: SUC84112
- Power Rating: 240 V (220 V) / 50/60 Hz
- Vacuum: 0 to -93 kPa [0 to -697 mmHg]
- Flow Rate (tested at jar): 55 litre/minute
- Gauge: Bourdon tube type, dual scale, graduated in kPa and mmHg
- Gauge Range: 0 to -100 kPa graduated at 5 kPa, 0 to -760 mmHg graduated at 20 mmHg
- Vacuum Regulator: Neddle valve type
- Pump type: Twin Piston, oil free
- Motor: Permanent split capacitor
- Filter: Disposable bacterial, 0.3 microns
- Collection Canister: 2 x 2 Litre autoclavable, shatterproof polycarbonate jar with self sealing polypropylene bung
- Overflow Protection for Collection Canister: Float valve mechanism
- Dimensions: Unit: 820 mm H 460 mm W 300 mm D Packed: 850 mm H 500 mm W 350 mm D
- Weight: 20 kg
- Housing: Moulded Polyethylene Plastic
- Operation Mode: Continuous operation
Neonatal / Medium Vacuum High Flow
- Typical Application - Infant pharyngeal suctioning
- Vacuum range 0 to -35 kPa (-262.5mmHg)
- Flow 32 litre/minute
- 220/240V / 50/60 Hz
- Dual scale gauge in kPa and mmHg
- Powerful oil-less twin piston vacuum pump
- Twin 2 litre autoclavable polycarbonate suction cannisters with overflow valve
- Hydrophobic and bacteria filter protection
- Quiet, vibration free operation
- Optional remote footswitch
- Ergonomic design and robust construction
Thoracic / Very Low Vacuum High
- Typical Application - Thoracic drainage
- Vacuum range 0 to -7 kPa [ 0 to -70 cm H2O]
- Flow 20 litre/minute
- 220/240V / 50/60 Hz
- Inbuilt vacuum regulator and underwater tube seal eliminates the need for a cumbersome triple jar set up
- Dual scale gauge in kPa and cm H2O
- Powerful oil-less twin piston vacuum pump
- Twin 2 litre autoclavable polycarbonate suction cannisters with overflow valve
- Thoracic bung with underwater drainage tube
- Hydrophobic and bacteria filter protection
- Quiet, vibration free operation
- Optional remote footswitch
- Ergonomic design and robust construction
- Typical Application - Thoracic drainage
- Vacuum range 0 to -7 kPa [ 0 to -70 cm H2O]
- Flow 20 litre/minute
- 220/240V / 50/60 Hz
- Inbuilt vacuum regulator and underwater tube seal eliminates the need for a cumbersome triple jar set up
- Dual scale gauge in kPa and cm H2O
- Powerful oil-less twin piston vacuum pump
- Twin 2 litre autoclavable polycarbonate suction cannisters with overflow valve
- Thoracic bung with underwater drainage tube
- Hydrophobic and bacteria filter protection
- Quiet, vibration free operation
- Optional remote footswitch
- Ergonomic design and robust construction
